Aperçu /Produits/Générateur diesel silencieux/Professional diesel Generator Diesel Generator Set Powered by Doosan Super Silent Open 600kW 750KVA Power Plant

Professional diesel Generator Diesel Generator Set Powered by Doosan Super Silent Open 600kW 750KVA Power Plant

Professional diesel Generator Diesel Generator Set Powered by Doosan Super Silent Open 600kW 750KVA Power Plant
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Auvent: Personnalisé
Garantie: 12 mois/1 000 heures
taper: Silencieux (super silencieux) ou ouvert, silencieux, etc., en ligne/6 cylindres/4 temps/4 soupapes/1
Panneau de contrôle: Affichage numérique LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Type de sortie: CA monophasé/triphasé
Contrôleur: Deepsea/Smartgen/etc.
Application: Banque industrielle, etc.
Tension nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternateur: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nom du produit: Générateur diesel, générateur 600 kW, alimenté par un générateur diesel Doosan, générateur diesel de
Couleur: Exigence des clients
Fréquence: 50/60HZ
Puissance nominale: 600 kW
Moteur: Doosan d'origine
méthode de refroidissement: Système de refroidissement par eau
Mettre en évidence:

600kW silent diesel generator

,

Doosan powered generator set

,

750KVA super silent power plant
Informations de base
Lieu d'origine: Chine
Nom de marque: Doosan
Certification: CE
Numéro de modèle: DP222LC
Conditions de paiement et expédition
Détails d'emballage: Emballage de bulle
Délai de livraison: 30 jours
Capacité d'approvisionnement: 3000 ensembles / mois
Description de produit

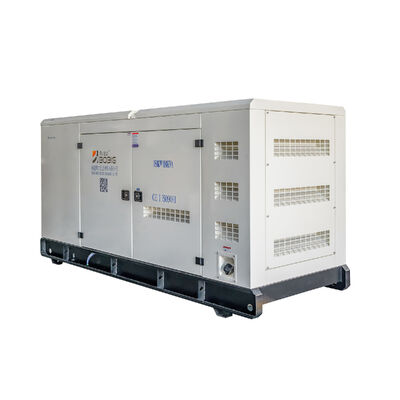

600kW 750KVA BOBIG Doosan Diesel Generator (Model: DP222LC)
Our 600kW 750KVA BOBIG Doosan diesel generator (Model: DP222LC) is designed to provide reliable power for a wide range of applications. Backed by the renowned Doosan brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 600kW (750KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: DP222LC Doosan engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 750 825
Power Rating (kW) 600 660
Frequency (Hz) 50
Engine Model DP222LC
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation

ESP: Standby power rating applicable for emergency power supply during utility power interruptions
Dimensions and Weight
Model BDO825 (Open Type) BDO825S (Silent Type)
Length (mm) 4500 5600
Width (mm) 1800 2200
Height (mm) 2745 2550
Tank Capacity (L) 1380 1380
Engine Specifications
Engine Model & Manufacturer DP222LC (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 128×142mm
Displacement 21.9 liters
Cylinders and Arrangement Cast iron, 12 cylinder, Vee-Type
Battery Charging Alternator 27.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 40 liters, Min. 27 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 1420kg (engine only)
Dimension (LxWxH) 1738 × 1389 × 1258 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354FS
Alternator Rated Power 600kw/750kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Quality & Compliance
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Customization & Services
  • Customization and OEM services available with design drawings
  • Units equipped with original power supplies and standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Packaging & Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
