YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale

1
MOQ
USD 4500-7200
Prix
YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Mettre en évidence:

100kva silent diesel generator

,

125kva waterproof diesel generator

,

3 phase silent generator set
Informations de base
Lieu d'origine: Chine
Nom de marque: YUCHAI
Numéro de modèle: YCB6.9TAA180-G20
Conditions de paiement et expédition
Détails d'emballage: 385*122*195cm
Délai de livraison: 30 JOURS OUVRABLES
Conditions de paiement: LC, T/T, D/P
Capacité d'approvisionnement: 500 pièces par mois
Description de produit
YUVCHAI Silent Diesel Generators
YUVCHAI 100kVA, 125kVA, 138kVA Silent Diesel Generators - Waterproof Diesel Generator Silent Set with 3 Phase Generator
Product Overview
Our Yuchai YCB6.9TAA180-G20 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Yuchai engine, this 100kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

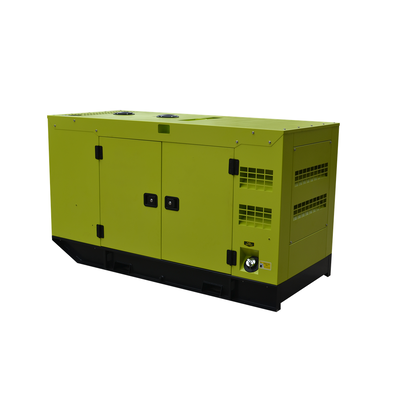

YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale 0
Power Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)125138
Power Rating (kW)100110
Frequency (Hz)50
Engine ModelYCB6.9TAA180-G20
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8 hours @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation period.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Dimensions and Weight
ModelBYU138 (Open Type)BYU138S (Silent Type)
Length (L) mm24203850
Width (W) mm9501220
Height (H) mm15601950
Tank Capacity (L)230230
Engine Specifications
Engine Model & ManufacturerYCB6.9TAA180-G20 (YUCHAI)
Emission Certification----
Number of Cylinders6
Cylinder ArrangementVertical
CycleFour Stroke
AspirationTurbocharged, Air-Air Intercooled
Bore x Stroke108 x 125 mm
Cubic Capacity6.87 L
Compression Ratio17.5:1
Prime Power / Speed120 kW / 1500 rpm
Standby Power / Speed133 kW / 1500 rpm
Governor TypeMechanical
Cooling SystemDirect Injection
Transient Frequency Deviation-0.833333333
Total Lubrication System Capacity12 L
Coolant Capacity (Engine Only)31 L
Fuel Consumption @ 100% Load198.4 g/kWh @ 1500 rpm
Starter MotorDC 24V
Charge AlternatorDC 24V
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274D
Alternator Rated Power100kW / 125kVA
Rated Voltage (V)230V / 400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH Class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15% ~ +20%
Control Panel - DSE 6120
Auto Start and Auto Mains Failure Control Module
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only)
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet specific application requirements

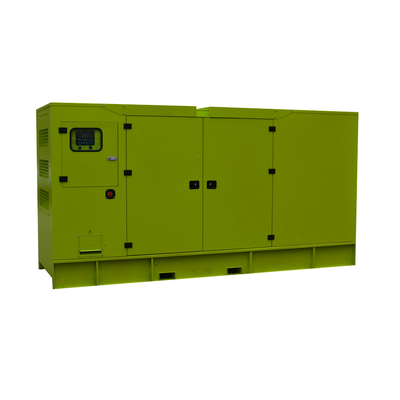

YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale 1
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) for increased water resistance
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine OptionsAlternator OptionsFuel System OptionsGenerating Set Options
Water Jacket PreheaterPMG Excitation12/24 Hour Base TankDeepsea, ComAp, Smartgen etc. Controller
Oil PreheaterSpace HeaterBunded Fuel TankTrailer
Oil Manual PumpWinding Temperature MeasuringExternal Fuel TankTools with the Machine
Automatic Fuel Feeding
Switch Between External Tank and Base Tank (Three-way Valve)
Product Images

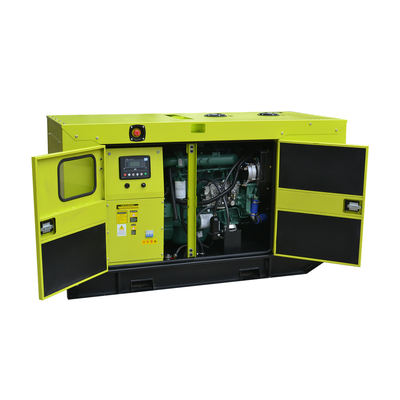

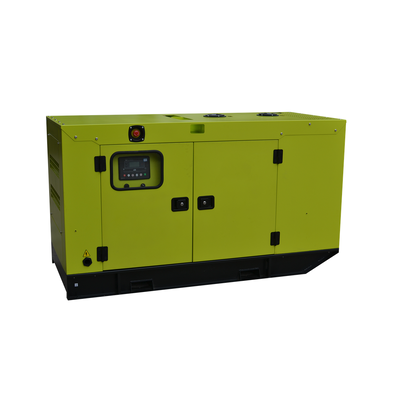

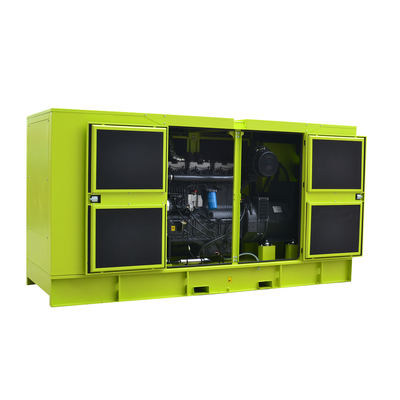

YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale 2YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale 3YUVCHAI 100kva 125kva 138kva Silent Diesel Generators Waterproof diesel Generator Silent Set with 3 Phase Generator for Sale 4
