300kW 375KVA Water-cooled Doosan Super Silent Diesel Generator Set Portable Home-use Silentcanopy diesel Generator Low Noise

300kW 375KVA Water-cooled Doosan Super Silent Diesel Generator Set Portable Home-use Silentcanopy diesel Generator Low Noise
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Auvent: Personnalisé
Garantie: 12 mois/1 000 heures
Taper: Silencieux (super silencieux) ou ouvert, silencieux, etc., en ligne/6 cylindres/4 temps/4 soupapes/1
Panneau de contrôle: Affichage numérique LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Type de sortie: CA monophasé/triphasé
Contrôleur: Deepsea/Smartgen/etc.
Application: Banque industrielle, etc.
Tension nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternateur: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nom du produit: Générateur diesel, générateur 375KVA, alimenté par un générateur diesel ISUZU, générateur diesel de
Couleur: Exigence des clients
Fréquence: 50/60 Hz
Puissance nominale: 375kVA
Moteur: Doosan d'origine
méthode de refroidissement: Système de refroidissement par eau
Mettre en évidence:

300kW silent diesel generator

,

water-cooled Doosan generator set

,

portable home-use silent generator

Informations de base
Lieu d'origine: Chine
Nom de marque: Doosan
Certification: CE
Numéro de modèle: DP126CB
Conditions de paiement et expédition
Détails d'emballage: Emballage de bulle
Délai de livraison: 30 jours
Capacité d'approvisionnement: 3000 ensembles / mois
Description de produit
300kW 375KVA Water-cooled Doosan Super Silent Diesel Generator Set
Product Overview

Our 300kW 375KVA BOBIG Doosan diesel generator (Model: DP126CB) is designed to provide reliable power for a wide range of applications. Backed by the renowned Doosan brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 300kW (375KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: DP126CB Doosan engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 375 413
Power Rating (kW) 300 330
Frequency (Hz) 50
Engine Model DP126CB
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP: Prime power is available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.

ESP: Standby power rating applies for emergency power during utility interruptions. No overload, utility parallel, or negotiated outage operation capability available.

Dimensions and Weight
Model BDO413 (Open Type) BDO413S (Silent Type)
Length (mm) 3100 4050
Width (mm) 1050 1510
Height (mm) 2150 2050
Tank Capacity (L) 690 690
Engine Specifications
Engine Model & Manufacturer DP126CB (DOOSAN)
Engine Type 4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 123 x 155 mm
Displacement 11.051 liters
Compression Ratio 16.5 : 1
Rotation Counter clockwise viewed from flywheel
Firing Order 1-5-3-6-2-4
Dry Weight 1,058 kg
Dimension (LxWxH) 1,411 x 1,133 x 1,323 mm
Fly Wheel Housing SAE NO.1M
Fly Wheel Clutch NO.14M
Number of Teeth on Flywheel 106
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314F
Alternator Rated Power 300kW/375kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Certifications & Standards

Our generator complies with multiple international and national standards:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification

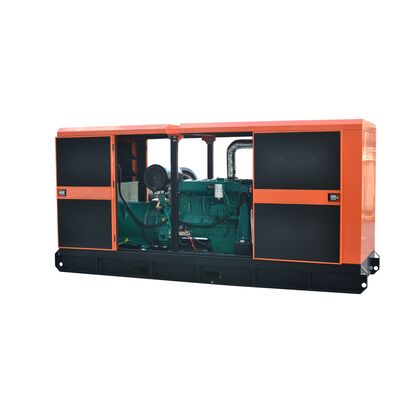

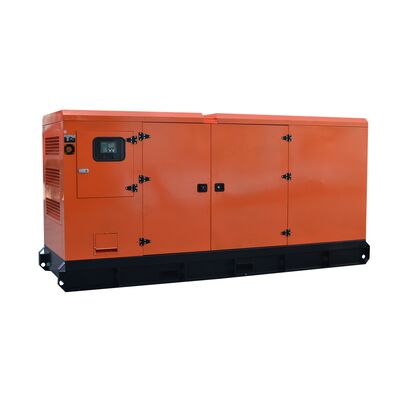

300kW 375KVA Water-cooled Doosan Super Silent Diesel Generator Set Portable Home-use Silentcanopy diesel Generator Low Noise 0 300kW 375KVA Water-cooled Doosan Super Silent Diesel Generator Set Portable Home-use Silentcanopy diesel Generator Low Noise 1
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services
  • We support customization and OEM services with design drawings
  • All units equipped with standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • 24/7 professional after-sales technical support

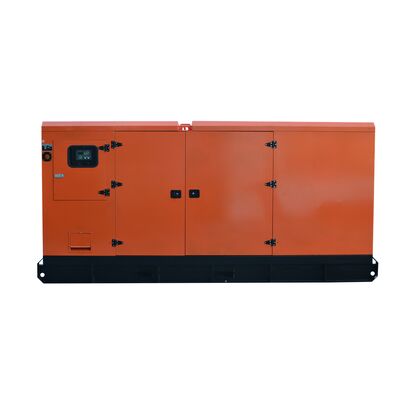

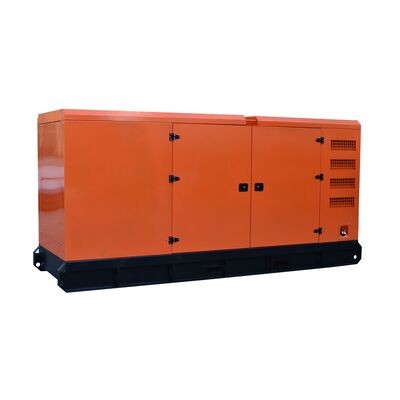

300kW 375KVA Water-cooled Doosan Super Silent Diesel Generator Set Portable Home-use Silentcanopy diesel Generator Low Noise 2
Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.

Why Choose Us
  • Brand Reputation: Doosan is a trusted brand with long history of quality products
  • Quality Assurance: Strict manufacturing according to international standards
  • Customization Options: Tailored solutions based on specific requirements
  • Advanced Facilities: 10,000 sqm factory with modern equipment and testing systems
Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Also accept 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as customer request.

Do you provide spare parts for maintenance?

Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance.

Can you offer parts if needed?

Yes, we can provide parts at any time, usually shipped within 3-5 days.

Can you customize voltage, frequency, tank capacity, phase and color?

Yes, all specifications can be customized according to your needs.

What is your distribution policy?

We welcome distributors worldwide and can issue authority certificates and sign agreements.
