100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification

1
MOQ
USD 4500-7200
Prix
100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Mettre en évidence:

100kw silent diesel generator with CE certification

,

125kva silent diesel generator for factory

,

110kw YTO diesel generator with warranty
Informations de base
Lieu d'origine: Chine
Nom de marque: YTO
Numéro de modèle: YTO LR4M3L-D88
Conditions de paiement et expédition
Détails d'emballage: 275*104*148cm
Délai de livraison: 30 JOURS OUVRABLES
Conditions de paiement: LC, T/T, D/P
Capacité d'approvisionnement: 500 pièces par mois
Description de produit

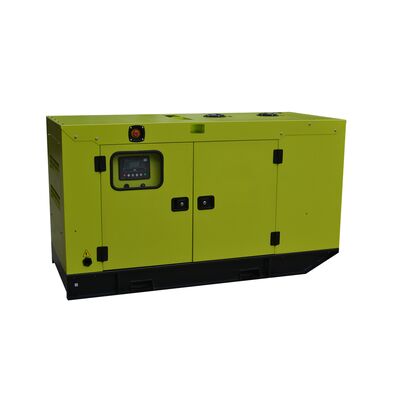

YTO LR4M3L-D88 Diesel Generator Set

High-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 100kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability.

100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification 0100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification 1
Power Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)125138
Power Rating (kW)100110
Frequency (Hz)50
Engine ModelLR4M3L-D88
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230
Fuel Tank Capacity Operating Time≥ 8h @ 75% load

PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
ModelBYT138 (Open Type)BYT138S (Silent Type)
Length (L) mm23502750
Width (W) mm8001040
Height (H) mm15801400
Tank Capacity (L)230230
Engine Specifications
Engine Model & ManufacturerLR4M3L-D88 (YTO)
Number of Cylinders4
Cylinder ArrangementIn-line
Cycle4 stroke, compression ignition
Method of Air AspirationTurbocharged with Aftercooler
Cooling MediumLiquid
Bore110 mm
Stroke125 mm
Compression Ratio17.0:1
Cubic Capacity4.75 L
Dry Engine Weight450 kg
Dimension (L*W*H)986*1146*713
Direction of RotationAnti-clockwise viewed on flywheel
Governed Engine Speed1500
Firing Order1-3-4-2 (1cyl furthest from flywheel)
Steady State Speed Stability at Constant Load3%
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274D
Alternator Rated Power100kW/125kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Specific Fuel Consumption≤ 202g/kW.h
Transient State Voltage≤-15%~+20%
Control Panel - DSE 6120
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
EngineAlternatorFuel SystemGenerating Set
Water Jacket PreheaterPMG excitation12/24 hour base tankDeepsea, ComAp, Smartgen etc. controller
Oil PreheaterSpace heaterBunded fuel tankTrailer
Oil manual pumpWinding temperature measuringExternal fuel tankTools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

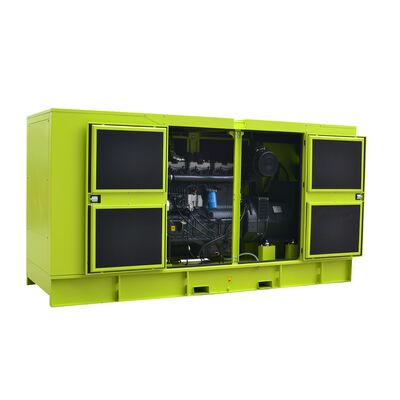

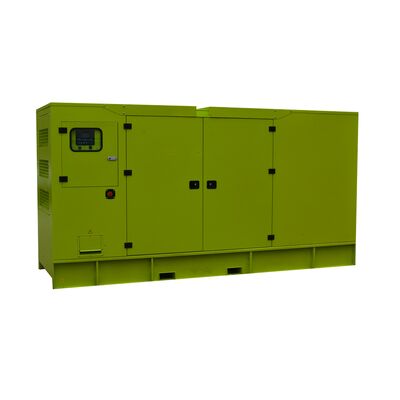

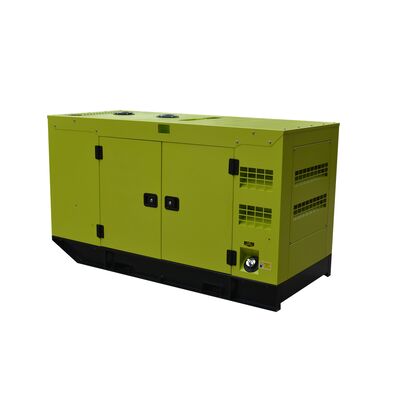

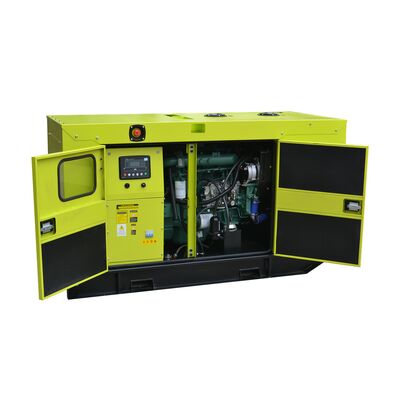

Additional Product Images
