High-Performance 182kw Silent Diesel Generator for Reliable Power

1
MOQ
13000-17000USD
Prix
High-Performance 182kw Silent Diesel Generator for Reliable Power
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Mettre en évidence:

182kw silent diesel generator

,

high-performance diesel generator

,

reliable power diesel generator
Informations de base
Lieu d'origine: Chine
Nom de marque: Cummins
Certification: ISO 9001
Numéro de modèle: Le nombre d'équipements utilisés est déterminé en fonction de l'échantillon.
Conditions de paiement et expédition
Détails d'emballage: 350*122*195cm
Délai de livraison: 30 JOURS OUVRABLES
Capacité d'approvisionnement: 500 pièces par mois
Description de produit

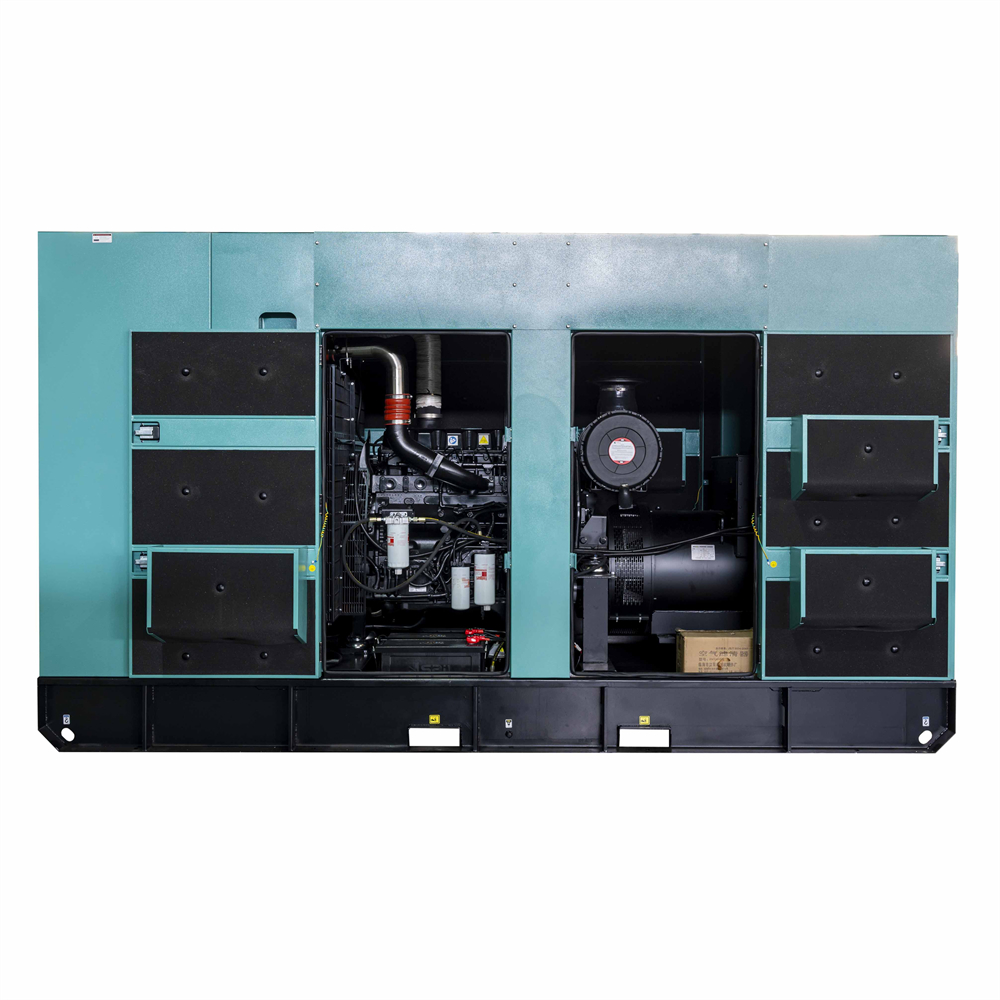

High-Performance 182kW Silent Diesel Generator
High-performance, heavy-duty diesel generator set designed for reliable prime and standby power applications. Engineered with the renowned Cummins engine, this 182kW unit features a robust soundproof canopy for low noise operation, making it ideal for construction, industrial, commercial, and emergency backup use.
High-Performance 182kw Silent Diesel Generator for Reliable Power 0 High-Performance 182kw Silent Diesel Generator for Reliable Power 1
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 227 250
Power Rating (kW) 182 200
Frequency (Hz) 50
Engine Model 6CTAA8.3-G9
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BC250 (Open Type) BC250S (Silent Type)
Length (L) mm 2570 3500
Width (W) mm 950 1220
Height (H) mm 1850 1950
Tank Capacity (L) 419 419
Engine Specifications
Engine Model & Manufacturer 6CTAA8.3-G9 (Cummins)
Emission Certification ----
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Air-Air Intercooler
Bore x Stroke 114 x 135 mm
Displacement 8.3 L
Compression Ratio 16.7:1
Prime Power / Speed 200 kW / 1500 rpm
Standby Power / Speed 220 kW / 1500 rpm
Fuel System BYC P7100 Pump / Electronic Governor
Cooling System Force Water Cooling Cycle
Frequency Droop ≤ 5%
Total Lubrication System Capacity 23.8 L
Coolant Capacity (Engine Only) 12.3 L
Fuel Consumption (100% Load) 204 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Alternator Rated Power 182kW / 227kVA
Rated Voltage (V) 230V / 400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H Class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
High-Performance 182kw Silent Diesel Generator for Reliable Power 2
Key Benefits
  • Automatic transfer between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance scheduling
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility with data logging facility
  • Internal PLC editor with protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode and 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing
  • Real time clock with manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler with idle control for starting & stopping
  • Fuel level alarms and 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines including Tier 4 support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • IP65 rating (with optional gasket) for water ingress resistance
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

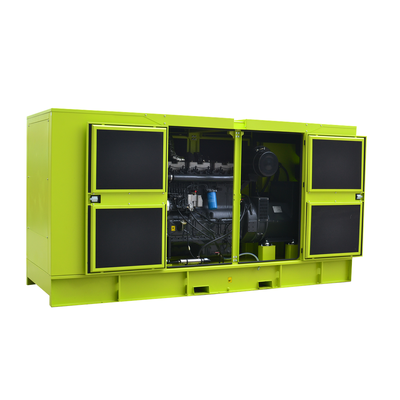

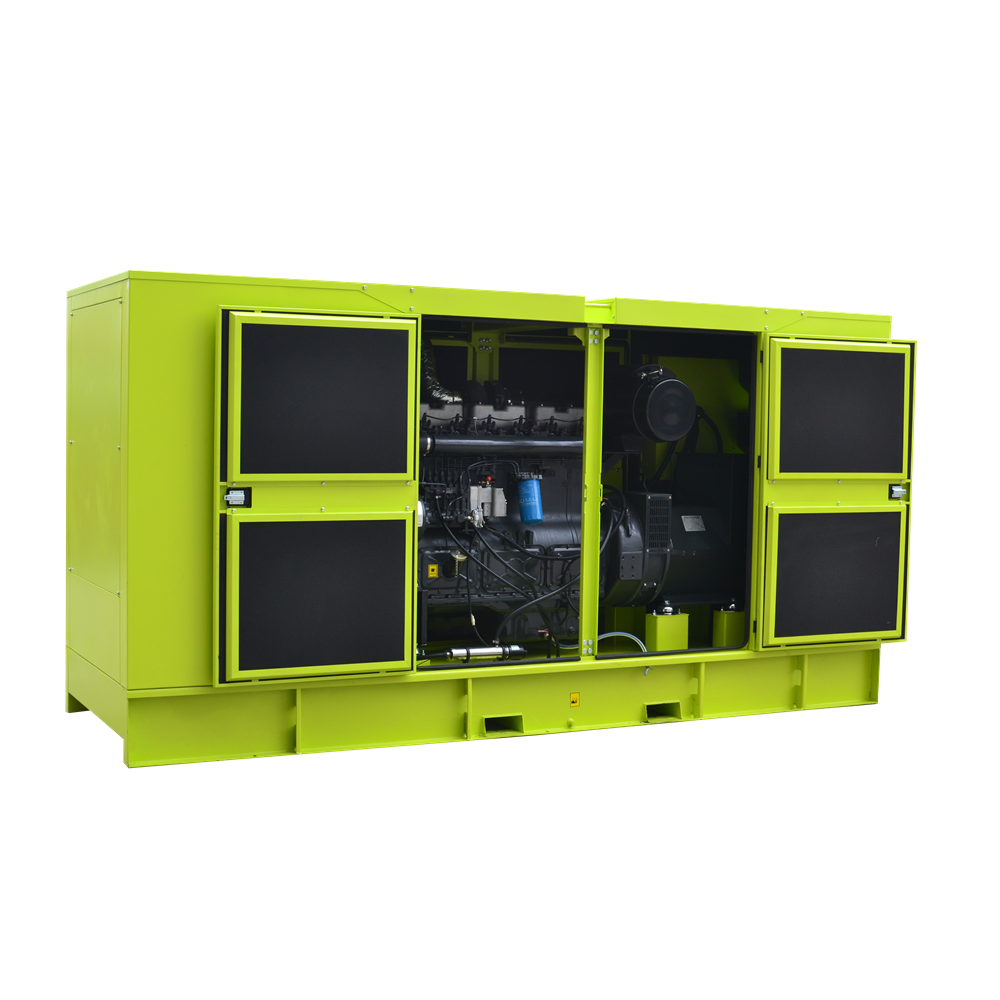

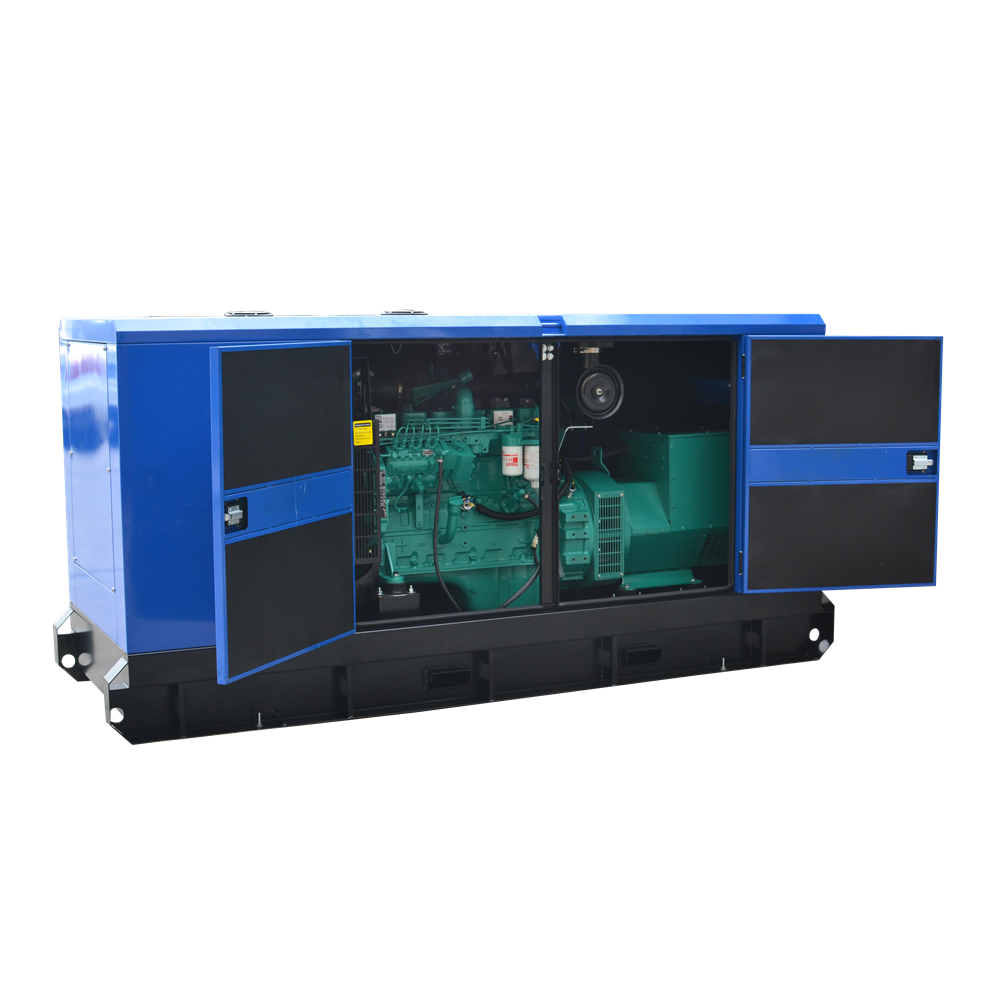

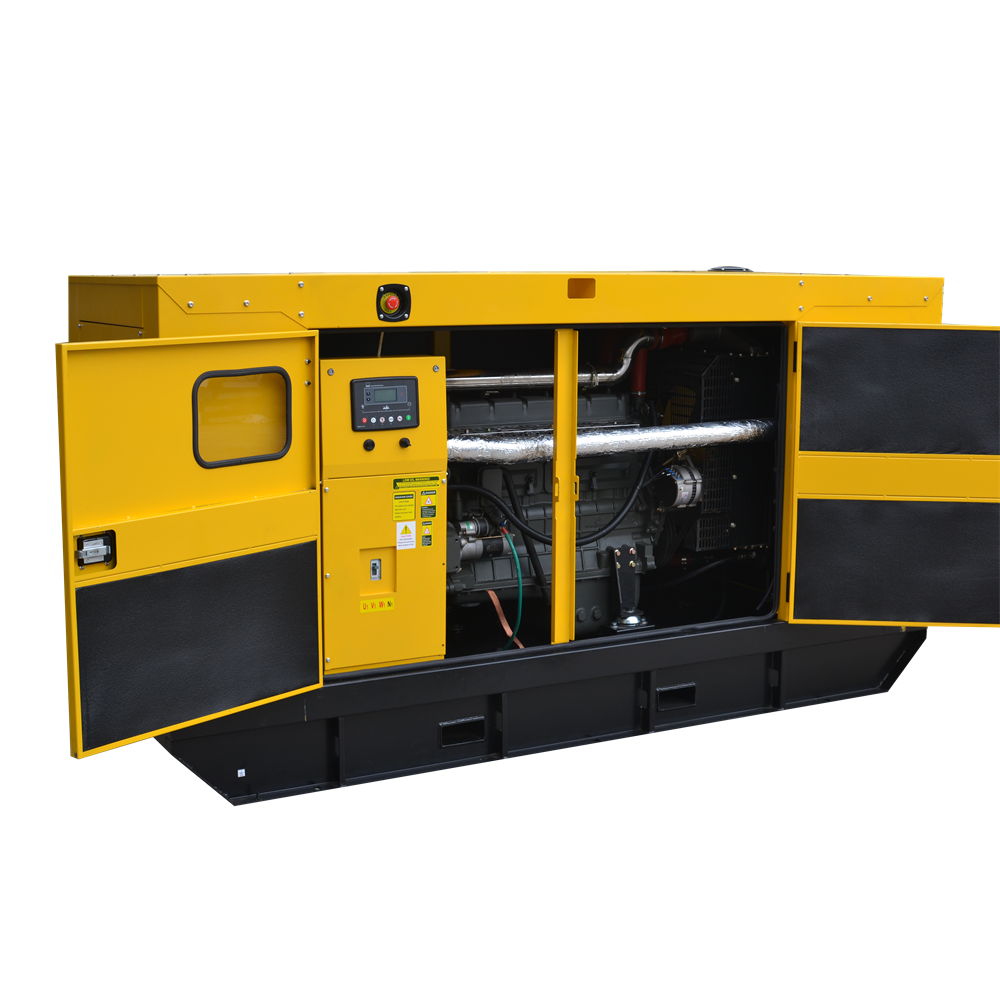

Product Gallery
High-Performance 182kw Silent Diesel Generator for Reliable Power 3 High-Performance 182kw Silent Diesel Generator for Reliable Power 4 High-Performance 182kw Silent Diesel Generator for Reliable Power 5 High-Performance 182kw Silent Diesel Generator for Reliable Power 6
