Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling

1 ensemble
MOQ
1500-4299USD
Prix
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Vitesse: 1500 tr / min
Fréquence: 50/60Hz
Puissance nominale: 5KW à 2000KW
Type de sortie: AC de troisième phase
Taper: Ouvert ou silencieux (super silencieux)
Couleur: À vos besoins, personnalisé
Mettre en évidence:

SDEC diesel generator 180KW water cooling

,

silent type SDEC diesel generator 225KVA

,

customized open type SDEC generator with warranty
Informations de base
Lieu d'origine: Chine
Nom de marque: SDEC
Numéro de modèle: Le nombre de personnes concernées par les mesures de sécurité est déterminé en fonction de l'échanti
Conditions de paiement et expédition
Détails d'emballage: Contre-plaqué
Délai de livraison: 20 jours de travail
Conditions de paiement: LC, T/T
Capacité d'approvisionnement: 50 ensembles par mois
Description de produit
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling
High Quality Open/Silent Type SDEC Diesel Generator providing reliable 160KW/200KVA backup power supply with water cooling system. Available in both open and silent configurations to meet diverse operational requirements.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 225 248
Power Rating (kW) 180 198
Frequency (Hz) 50
Engine Model SC9D310D2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BSD248 (Open Type) BSD248S (Silent Type)
Length (L) mm 2600 3550
Width (W) mm 1000 1220
Height (H) mm 1850 1950
Tank Capacity (L) 414 414
Engine Specifications
Engine Model & Manufacturer SC9D310D2 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type wet cylinder liner
Number of Cylinders 6
Bore × Stroke 114 × 144 mm
Displacement 8.82 lit.
Compression Ratio 18 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle 7.5°BTDC
Dry Weight 740 kg
Dimension 1422×762×1186mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 2#
Fly Wheel SAE 11.5# (number of teeth: 125)
Injection Pump Longkou in-line "P" type
Governor Electric type
Feed Pump Mechanical type
Injection Nozzle Multi hole type
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274J
Alternator Rated Power 180kw/225kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%

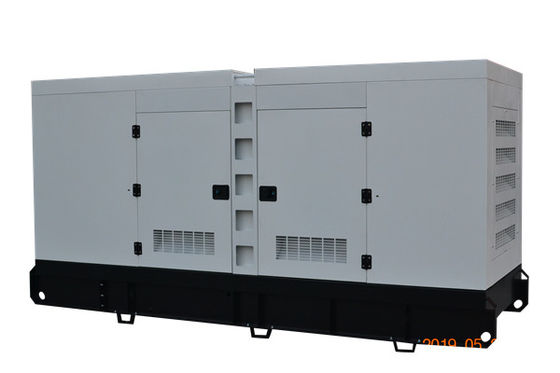

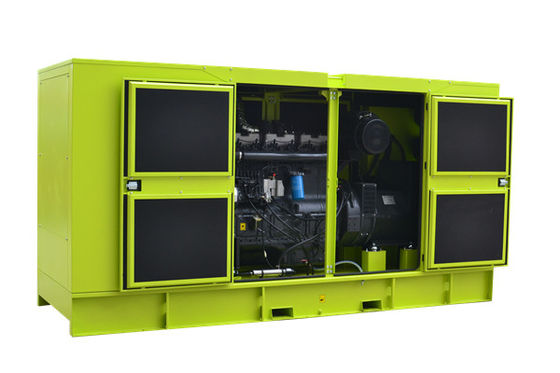

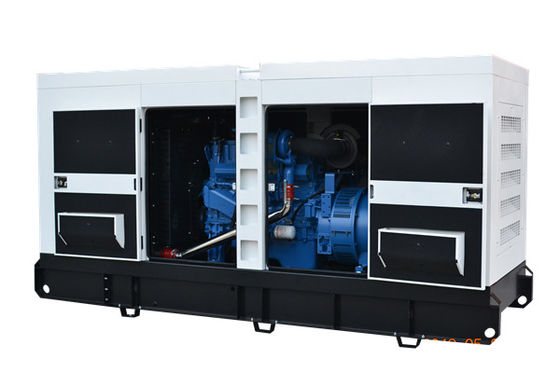

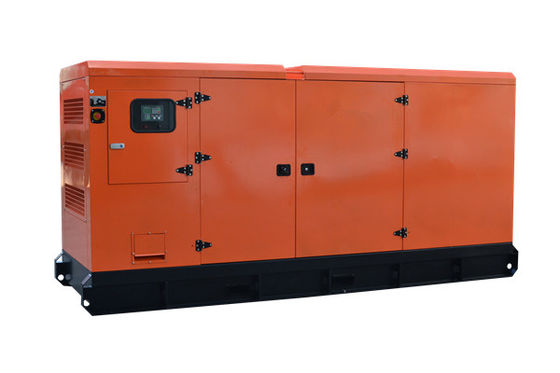

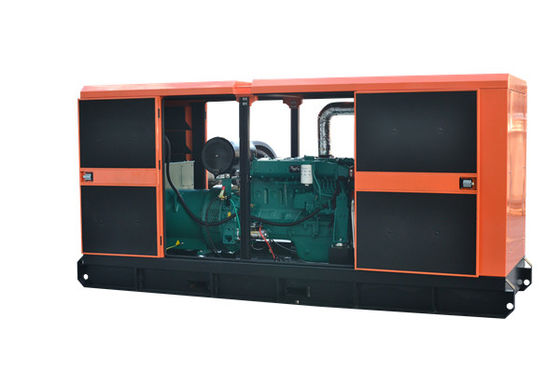

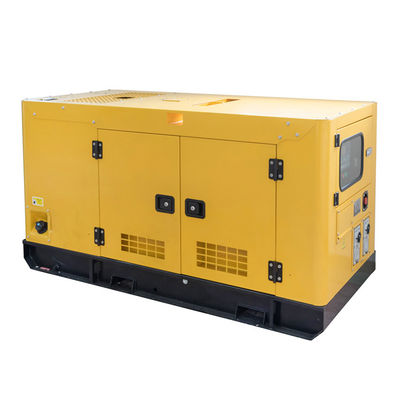

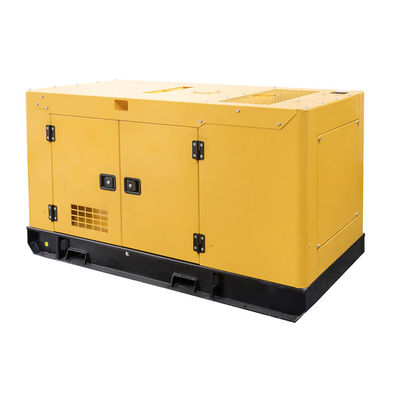

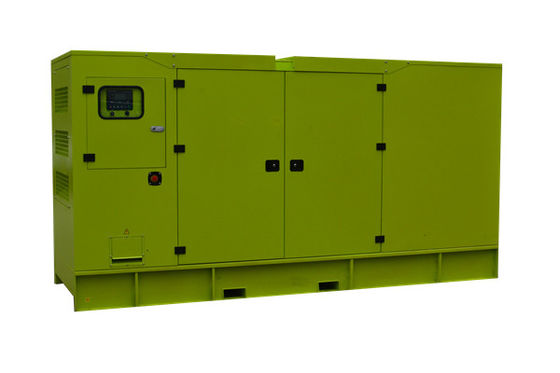

Product Images
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 0
Front View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 1
Side View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 2
Control Panel
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 3
Engine Detail
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 4
Alternator View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 5
Silent Type Exterior
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 6
Internal Components
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 7
Cooling System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 8
Fuel System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 9
Electrical Connections
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 10
Full Assembly
Customized Factory Price Open/Silent Type SDEC Diesel Generator 180KW/225KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
