Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling

1 ensemble
MOQ
1500-3999USD
Prix
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Vitesse: 1500 tr / min
Fréquence: 50/60Hz
Puissance nominale: 5KW à 2000KW
Type de sortie: AC de troisième phase
Taper: Ouvert ou silencieux (super silencieux)
couleur: À vos besoins, personnalisé
Mettre en évidence:

SDEC diesel generator 160KW water cooling

,

silent type SDEC diesel generator 200KVA

,

customized factory price diesel generator
Informations de base
Lieu d'origine: Chine
Nom de marque: SDEC
Numéro de modèle: 6DTAA8.9-G21
Conditions de paiement et expédition
Détails d'emballage: Contre-plaqué
Délai de livraison: 10 jours de travail
Conditions de paiement: LC, T/T
Capacité d'approvisionnement: 50 ensembles par mois
Description de produit
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling
Factory Price Open/Silent Type SDEC Diesel Generator 150KW/188KVA Power Supply Water Cooling. Customized Factory Price Open/Silent Type SDEC Diesel Generator 150KW/188KVA Power Supply Water Cooling. High Quality Open/Silent Type SDEC Diesel Generator providing reliable 150KW/188KVA backup power supply with water cooling system. Available in both open and silent configurations to meet diverse operational requirements.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General informationPrime powerStandby power
Rated Power (kVA)200220
Power Rating (kW)160176
Frequency (Hz)50
Engine Model6DTAA8.9-G21
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated voltage (V)400/230 (According to customer requirements)
Fuel tank capacity operating time≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
ModelBSD220 (Open type)BSD220S (Silent type)
Length (L) mm26003550
Width (W) mm10001220
Height (H) mm18501950
Tank capacity (L)368368
Engine Specifications
Engine model & manufacturer6DTAA8.9-G21 (SDEC)
Engine Model6DTAA8.9-G21
Engine TypeIn-line, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion typeDirect injection
Cylinder Typewet cylinder liner
Number of cylinders6
Bore × stroke114 × 144 mm
Displacement8.82 lit.
Compression ratio18 : 1
Firing order1-5-3-6-2-4
fuel injection advance angle7.5°BTDC
Dry weight740 kg
Dimension1422×762×1186mm
RotationCCW viewed from flywheel
Fly wheel housingSAE 2#
Fly wheelSAE 11.5# (number of teeth: 125)
Injection pumpLongkou in-line "P" type
GovernorElectric type
Feed pumpMechanical type
Injection nozzleMulti hole type
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274H
Alternator Rated Power160kw/200kva
Rated voltage (V)230v/400v
Rated frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%
Product Images
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 0

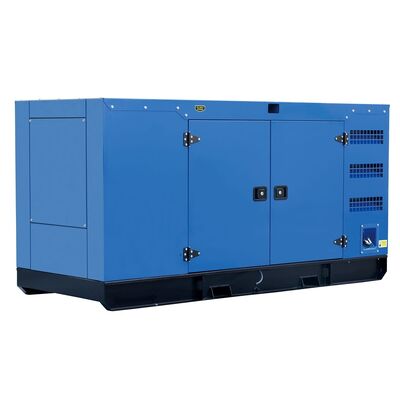

Front View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 1

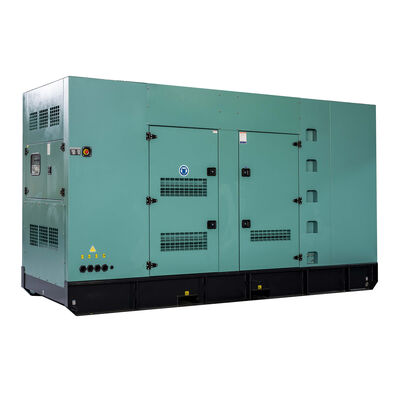

Side View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 2
Control Panel
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 3

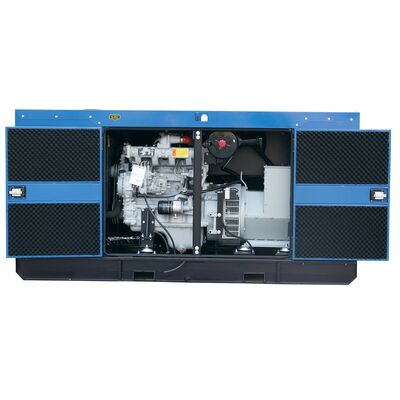

Engine Detail
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 4
Alternator View
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 5
Silent Type Exterior
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 6
Internal Components
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 7
Cooling System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 8
Fuel System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 9
Electrical Connections
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 10
Full Assembly
Customized Factory Price Open/Silent Type SDEC Diesel Generator 160KW/200KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
