Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable

1
MOQ
USD 300-860
Prix
Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Mettre en évidence:

SDEC 330kW diesel generator

,

super silent diesel generator

,

reliable SDEC diesel generator
Informations de base
Lieu d'origine: Chine
Nom de marque: SDEC
Numéro de modèle: 6ETAA12.8-G21
Conditions de paiement et expédition
Détails d'emballage: 420*140*212cm
Délai de livraison: 30 JOURS OUVRABLES
Conditions de paiement: LC, T/T, D/P
Capacité d'approvisionnement: 500pcs par mois
Description de produit
SDEC diesel generator set
Product Description

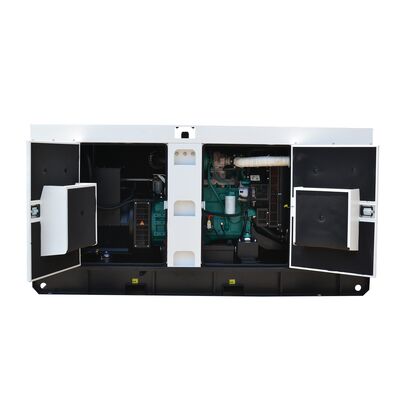

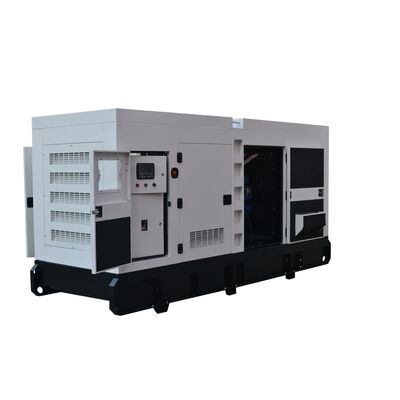

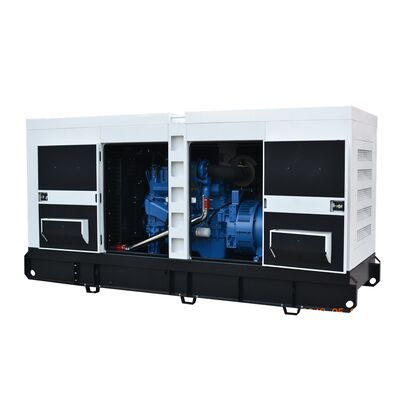

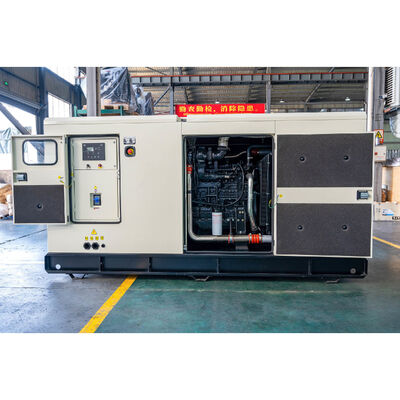

Our SDEC 6ETAA12.8-G21 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 330kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable 0Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable 1



General information Prime power Standby power
Rated Power (kVA) 413 454
Power Rating (kW) 330 363
Frequency (Hz) 50
Engine Model 6ETAA12.8-G21
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
(According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin



Dimension and Weight
Model BSD454
Open type		 BSD454S
Silent type
Length (L) mm 3100 4200
Width (W) mm 1050 1400
Height (H) mm 2100 2120
Tank capacity (L) 759 759





Engine Specification
Engine model & manufacturer 6ETAA12.8-G21(SDEC)
Engine Model 6ETAA12.8-G21
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion type Direct injection
Cylinder Type wet cylinder liner
Number of cylinders 6
Bore × stroke 130 × 161 mm
Displacement 12.8 lit.
Compression ratio 17 : 1
Firing order 1-5-3-6-2-4
fuel injection advance angle 14°BTDC
Dry weight 1164 kg
Dimension 1856×1000×1354mm
Rotation CCW viewed from flywheel
Fly wheel housing SAE 1#
Fly wheel SAE 14#(number of teeth: 133)
Injection pump Longkou in-line “PZ” type
Governor Electric type
Feed pump Mechanical type
Injection nozzle Multi hole type










Alternator Specifica
Alternator
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354C
Alternator Rated Power 330kw/413kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

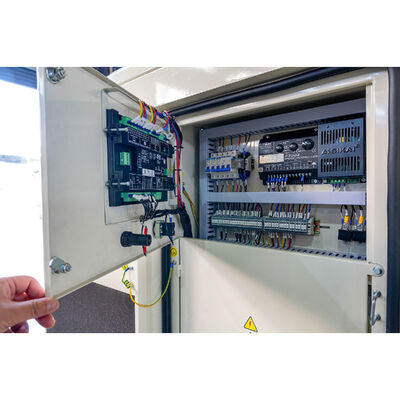

Control Panel



DSE 6120

Auto start and auto mains failure control module(Alternator frequency & can speed sensing)

  Key benefits
•Automatically transfers betweenmains (utility) and generator
(DSE6120 MKIII only) forconvenience.
•Hours counter provides accurateinformation for monitoring andmaintenance periods
•User-friendly set-up and buttonlayout for ease of use
•Multiple parameters are monitored& displayed simultaneously for fullvisibility
•The module can be configured tosuit a wide range of applications foruser flexibility
•PLC editor allows user configurablefunctions to meet user specificapplication requirements.

  Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable 2









Key features
•4-line back-lit LCD text display
•Multiple display languages
•Five-key menu navigation
•LCD alarm indication
•Customisable power-up text andscreen images.
•DSENet® expansion compatibility
•Data logging facility
•Internal PLC editor
•Protections disable feature
•Fully configurable via PC using
USB communications
•Front panel configuration withPIN protection
•Power save mode
•3-phase generator sensing andprotection
•3-phase mains (utility) sensing andprotection (DSE6120 MKIII only)
•Automatic load transfer control(DSE6120 MKIII only)
•Generator current and powermonitoring (kW, kvar, kVA, pf)
•Mains (utility) current and power
monitoring (kW
, kvar, kVA, pf)(DSE6120 MKIII only)
•kW overload alarm
•Over current protection
•Breaker control via fascia buttons



  •Fuel and start outputs configurablewhen using CAN
•6 configurable DC outputs
•4 configurable analogue/digitalinputs
•Support for 0 V to 10 V & 4 mA to20 mA sensors
•8 configurable digital inputs
•CAN, MPU and alternatorfrequency speed sensing in onevariant
•Real time clock
•Manual and automatic fuel pumpcontrol
•Engine pre-heat and post-heatfunctions
•Engine run-time scheduler
•Engine idle control for starting &stopping
•Fuel level alarms
•3 configurable maintenance alarms
•Compatible with a wide range ofCAN engines, including Tier 4engine support
•Uses DSE Configuration Suite PC
Softwar
e for simplifiedconfiguration
•Licence-free PC software
•IP65 rating (with optional gasket)offers increased resistance to wateringress
•Configurable CAN read &transmitted information.
•1 alternative configuration





















Options



Engine Alternator Fuel System Generating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		 PMG excitation
Space heater
inding temperature
measuring		 12 / 24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank
and base tank (three-way valve)		 Deepsea, ComAp, Smartgen
etc. controller
Trailer
Tools with the machine

Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable 3Factory Price SDEC 6ETAA12.8-G21 330kW Diesel Generator, Super Silent & Reliable 4
