Aperçu /Produits/Générateurs diesel de Cummins/900kW 1125KVA Manufacturer Factory Price Silent Portable Durable Diesel Generators Set Power Capacities Genset Generator Cummi

900kW 1125KVA Manufacturer Factory Price Silent Portable Durable Diesel Generators Set Power Capacities Genset Generator Cummi

900kW 1125KVA Manufacturer Factory Price Silent Portable Durable Diesel Generators Set Power Capacities Genset Generator Cummi
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Auvent: Personnalisé
Garantie: 12 mois/1 000 heures
Taper: Silencieux (super silencieux) ou ouvert, silencieux, etc., en ligne/6 cylindres/4 temps/4 soupapes/1
Panneau de contrôle: Affichage numérique LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Type de sortie: CA monophasé/triphasé
Contrôleur: Deepsea/Smartgen/etc.
Application: Banque industrielle, etc.
Tension nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternateur: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nom du produit: Générateur diesel, générateur 1125KVA, alimenté par un générateur diesel CUMMIN S, générateur diesel
Couleur: Exigence des clients
Fréquence: 50/60HZ
Puissance nominale: 900 kW
Moteur: CUMMIN S d'origine
méthode de refroidissement: Système de refroidissement par eau
Mettre en évidence:

900kW silent diesel generator

,

1125KVA portable genset

,

Cummins durable generator set
Informations de base
Lieu d'origine: Chine
Nom de marque: CUMMIN S
Certification: CE
Numéro de modèle: Le numéro de série est le numéro de série.
Conditions de paiement et expédition
Détails d'emballage: Emballage de bulle
Délai de livraison: 30 jours
Capacité d'approvisionnement: 500 pièces par mois
Description de produit
900kW 1125KVA BOBIG CUMMIN S Diesel Generator (Model: KTA38-G9)
Our 900kW 1125KVA BOBIG CUMMIN S diesel generator (Model: KTA38-G9) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 900kW (1125KVA) for various industrial, commercial, and residential applications
  • Stable and efficient prime power output ensuring continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: KTA38-G9 CUMMIN S engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 1125 1238
Power Rating (kW) 900 990
Frequency (Hz) 50
Engine Model KTA38-G9
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BC1238 (Open Type) BC1238S (Silent Type)
Length (L) mm 4950 6100
Width (W) mm 2000 2520
Height (H) mm 2500 3050
Tank Capacity (L) 2070 2070
Engine Specifications
Engine Model & Manufacturer KTA38-G9 (Cummin s)
Number of Cylinders 12
Cylinder Arrangement In-line
Cycle Four stroke
Aspiration Turbocharged, Aftercooled
Bore x Stroke 159 x 159 mm
Displacement 38 L
Compression Ratio 14.5:1
Prime Power/Speed 990 kW/1500 rpm
Standby Power/Speed 1100 kW/1500 rpm
Fuel System Cummin s PT
Cooling System Force Water Cooling Cycle
Frequency Droop ≤ 5%
Total Lubrication System Capacity 40.0 L
Coolant Capacity (engine only) 32.7 L
Fuel Consumption (100% load) 193 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404F
Alternator Rated Power 900kw/1125kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use at altitudes up to 1000m
  • Customized solutions available for different environmental conditions
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Customization and OEM Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Product Image

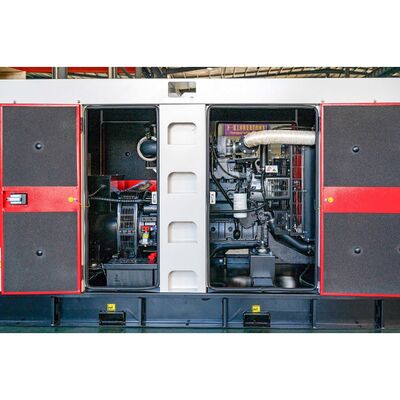

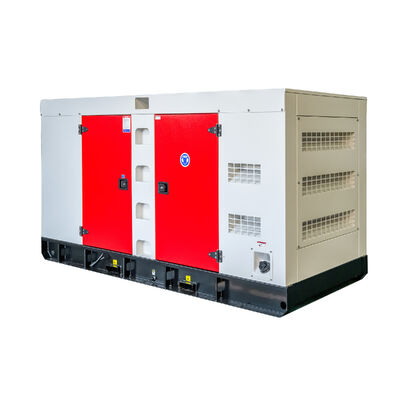

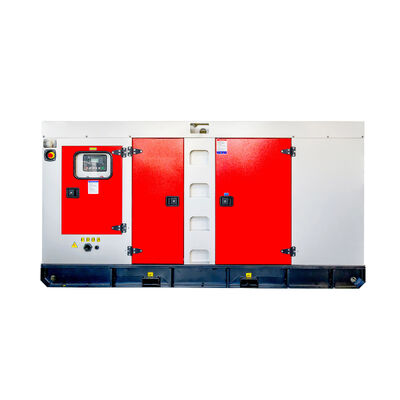

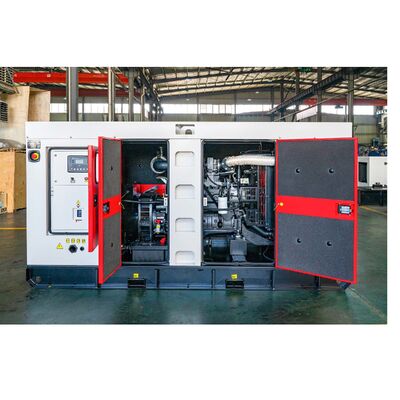

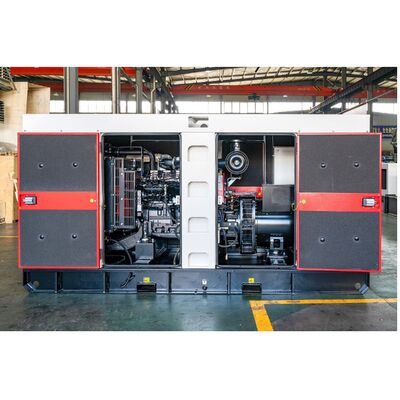

BOBIG CUMMIN S 900kW Diesel Generator Set
Certifications
Product Certification 1 Product Certification 2
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repair services.
