Aperçu /Produits/Générateurs diesel de Cummins/220v 230v 380v Super Diesel Silent Generator 500kW 625KVA 50/60HZ Single/Three Phase Portable Generators DCEC Cummi n

220v 230v 380v Super Diesel Silent Generator 500kW 625KVA 50/60HZ Single/Three Phase Portable Generators DCEC Cummi n

220v 230v 380v Super Diesel Silent Generator 500kW 625KVA 50/60HZ Single/Three Phase Portable Generators DCEC Cummi n
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Auvent: Personnalisé
Garantie: 12 mois/1 000 heures
Taper: Silencieux (super silencieux) ou ouvert, silencieux, etc., en ligne/6 cylindres/4 temps/4 soupapes/1
Panneau de contrôle: Affichage numérique LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Type de sortie: CA monophasé/triphasé
Contrôleur: Deepsea/Smartgen/etc.
Application: Banque industrielle, etc.
Tension nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternateur: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nom du produit: Générateur diesel, générateur 625KVA, alimenté par un générateur diesel CUMMIN S, générateur diesel
Couleur: Exigence des clients
Fréquence: 50/60HZ
Puissance nominale: 500 kW
Moteur: CUMMIN S d'origine
méthode de refroidissement: Système de refroidissement par eau
Mettre en évidence:

220v 380v diesel silent generator

,

500kW Cummins portable generator

,

three phase diesel generator 625KVA
Informations de base
Lieu d'origine: Chine
Nom de marque: CUMMIN S
Certification: CE
Numéro de modèle: Ktaa19-g6a
Conditions de paiement et expédition
Détails d'emballage: Emballage de bulle
Délai de livraison: 30 jours
Capacité d'approvisionnement: 500 pièces par mois
Description de produit

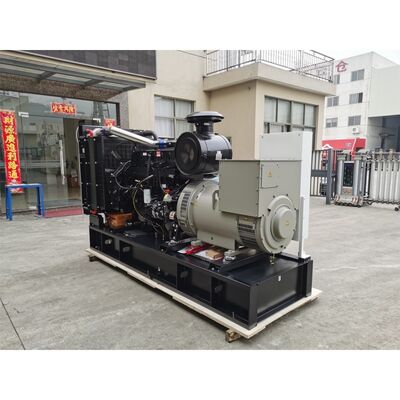

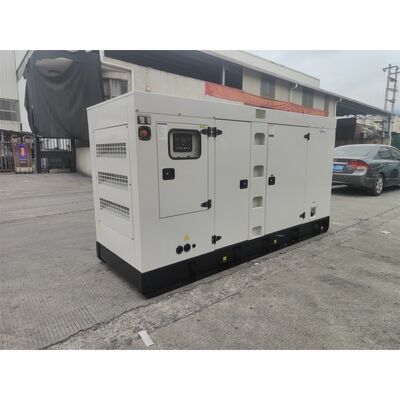

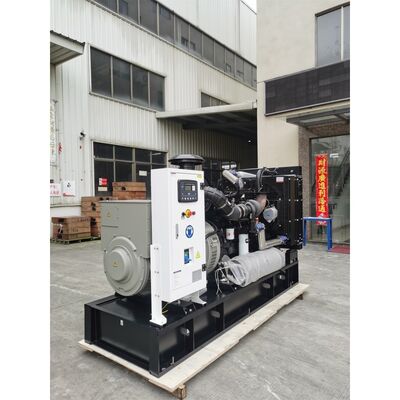

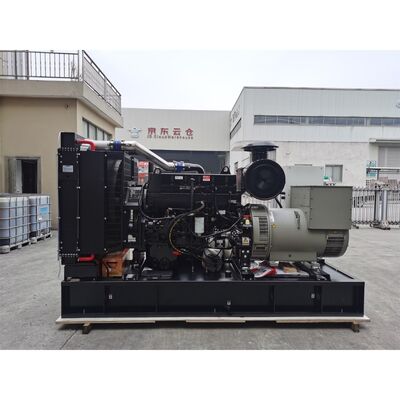

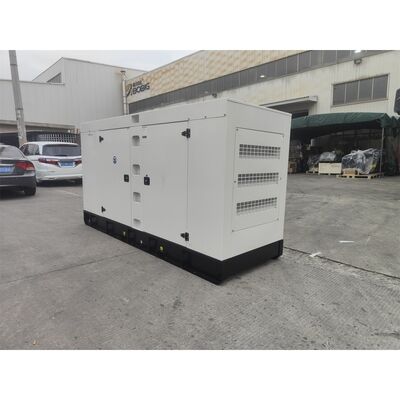

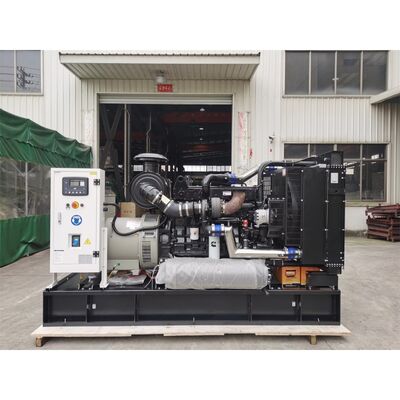

500kW 625KVA BOBIG CUMMIN S Diesel Generator (Model: KTAA19-G6A)

Our 500kW 625KVA BOBIG CUMMIN S diesel generator (Model: KTAA19-G6A) is designed to provide reliable power for a wide range of industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 500kW (625KVA) prime power output
  • Frequency: 50Hz standard operation
  • Stable and efficient performance under heavy loads
Engine Excellence
  • Engine Model: KTAA19-G6A CUMMIN S engine
  • Engine Speed: 1500 RPM for smooth operation
  • High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 625 688
Power Rating (kW) 500 550
Frequency (Hz) 50
Engine Model KTAA19-G6A
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions and Weight
Model BC688 (Open Type) BC688S (Silent Type)
Length (mm) 3600 5000
Width (mm) 1500 2000
Height (mm) 2460 2400
Tank Capacity (L) 1150 1150
Engine Specifications
Engine Model & Manufacturer KTAA19-G6A (Cummin s)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged, Air-to-air Cooled
Bore x Stroke 159 x 159 mm
Displacement 19 L
Compression Ratio 13.9:1
Prime Power/Speed 550 kW/1500 rpm
Standby Power/Speed 611 kW/1500 rpm
Fuel System Cummin s PT
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 37.9 L
Coolant Capacity (Engine Only) 26.5 L
Fuel Consumption @ 100% Load 216 g/kWh @1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354E
Alternator Rated Power 500kW/625kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Customization & Options

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

Standard Equipment
BOBIG 500kW Diesel Generator Standard Controller
Certifications

Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.

Quality Certification International Standards Certification
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. We provide free replacement of easy-damageable spare parts caused by production or material quality issues during the warranty period.

Why Choose BOBIG
  • Brand Reputation: Partnership with renowned CUMMIN S engine technology
  • Quality Assurance: Strict adherence to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
