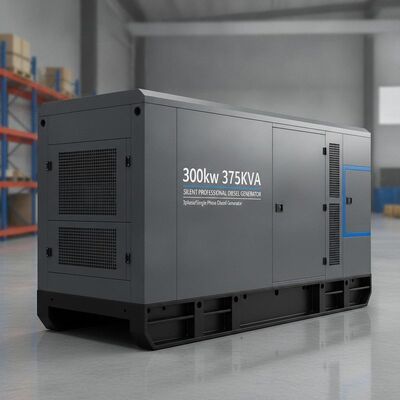

Our 300kW 375KVA BOBIG CUMMIN S diesel generator (Model: 6ZTAA13-G3) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the trusted CUMMIN S brand, it ensures high-quality performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 375 | 413 |
| Power Rating (kW) | 300 | 330 |
| Frequency (Hz) | 50 | |
| Engine Model | 6ZTAA13-G3 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BC413 (Open Type) | BC413S (Silent Type) |
|---|---|---|
| Length (mm) | 3350 | 4300 |
| Width (mm) | 1300 | 1600 |
| Height (mm) | 2460 | 2430 |
| Tank Capacity (L) | 690 | 690 |
| Engine Model & Manufacturer | 6ZTAA13-G3 (Cummins) |
|---|---|
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged & Charge Air Cooled |
| Bore x Stroke | 130 x 163 mm |
| Displacement | 13.0 L |
| Compression Ratio | 17.0:1 |
| Prime Power/Speed | 340 kW/1500 rpm |
| Standby Power/Speed | 378 kW/1500 rpm |
| Fuel System | BYC PD/GAC |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 23.1 L |
| Coolant Capacity (engine only) | 13 L |
| Fuel Consumption @ 100% Load | 189 g/kWh @1500 rpm |
| Alternator Brand | BOBIG |
|---|---|
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314F |
| Alternator Rated Power | 300kW/375kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance with 24/7 technical support.
