Aperçu /Produits/Générateurs diesel de Cummins/Open/Silent Portable Diesel Generator for Home Small Power 3phase 250kW 313KVA diesel Generator diesel for Sale

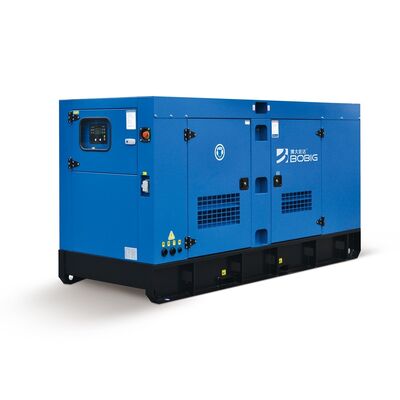

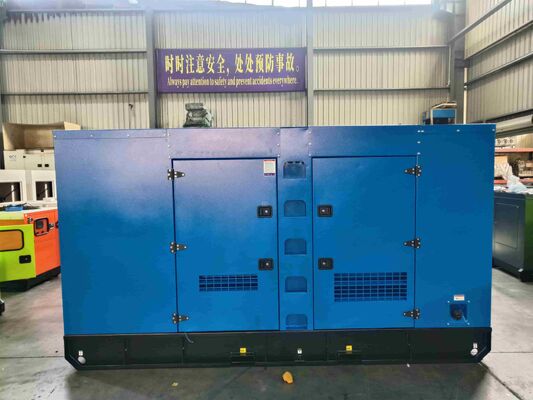

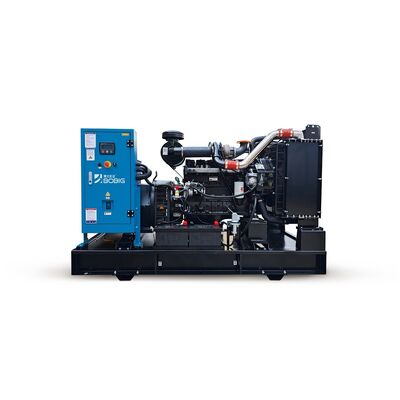

Open/Silent Portable Diesel Generator for Home Small Power 3phase 250kW 313KVA diesel Generator diesel for Sale

Open/Silent Portable Diesel Generator for Home Small Power 3phase 250kW 313KVA diesel Generator diesel for Sale
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Auvent: Personnalisé
Garantie: 12 mois/1 000 heures
taper: Silencieux (super silencieux) ou ouvert, silencieux, etc., en ligne/6 cylindres/4 temps/4 soupapes/1
Panneau de contrôle: Affichage numérique LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Type de sortie: CA monophasé/triphasé
Contrôleur: Deepsea/Smartgen/etc.
Application: Banque industrielle, etc.
Tension nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternateur: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nom du produit: Générateur diesel, générateur 250 kW, alimenté par un générateur diesel CUMMIN S, générateur diesel
Couleur: Exigence des clients
Fréquence: 50/60HZ
Puissance nominale: 250 kW
Moteur: CUMMIN S d'origine
méthode de refroidissement: Système de refroidissement par eau
Mettre en évidence:

portable diesel generator for home

,

silent diesel generator 250kW

,

3phase diesel generator 313KVA
Informations de base
Lieu d'origine: Chine
Nom de marque: CUMMIN S
Certification: CE
Numéro de modèle: Le nombre d'équipements utilisés est le suivant:
Conditions de paiement et expédition
Détails d'emballage: Emballage de bulle
Délai de livraison: 30 jours
Capacité d'approvisionnement: 500 pièces par mois
Description de produit
250kW 313KVA BOBIG CUMMIN S Diesel Generator
Model: MTAA11-G3 - Reliable Power Solution
Our 250kW 313KVA BOBIG CUMMIN S diesel generator (Model: MTAA11-G3) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 250kW (313KVA) for industrial, commercial, and residential applications
  • Stable prime power output ensures continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: MTAA11-G3 CUMMIN S engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 313 344
Power Rating (kW) 250 275
Frequency (Hz) 50
Engine Model MTAA11-G3
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BC344 (Open Type) BC344S (Silent Type)
Length (mm) 3050 3900
Width (mm) 1140 1400
Height (mm) 1880 1950
Tank Capacity (L) 575 575
Engine Specifications
Engine Model & Manufacturer MTAA11-G3 (Cummin s)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four stroke
Aspiration Turbocharged and Charged Air Cooled
Bore x Stroke 125 x 147 mm
Displacement 10.8 L
Compression Ratio 15.0:1
Prime Power/Speed 282 kW/1500 rpm
Standby Power/Speed 313 kW/1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314DS
Rated Power 250kw/313kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Insulation Class H class
Customization & OEM Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with standard DSE 6120 controller (engine, generator, and controller are optional).
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7.
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer requested.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance and can supply parts anytime.
Can you customize voltage, frequency, and other specifications?
Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
