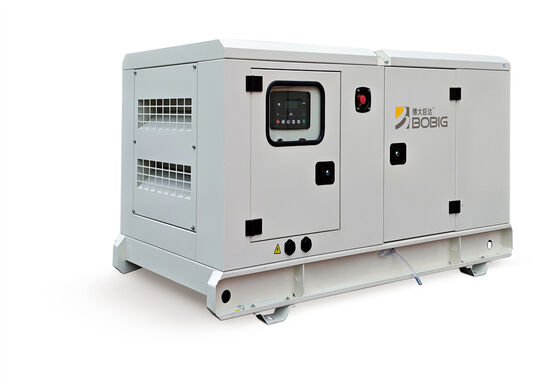

10KW 12KW 12KVA 15KVA SEDC Diesel Generator Set Puper Silent 3 Phase 50Hz Water-Cooled Factory Direct Sale Emergency

1
MOQ
1900-2900USD
Prix
10KW 12KW 12KVA 15KVA SEDC Diesel Generator Set Puper Silent 3 Phase 50Hz Water-Cooled Factory Direct Sale Emergency
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Mettre en évidence:

SDEC diesel generator 10KW water-cooled

,

silent 12KW diesel generator set

,

15KVA emergency diesel generator 3 phase
Informations de base
Lieu d'origine: Chine
Nom de marque: SEDC
Certification: ISO 9001
Numéro de modèle: Pour les véhicules à moteur à combustion
Conditions de paiement et expédition
Détails d'emballage: 195*85*110cm
Délai de livraison: 30 JOURS OUVRABLES
Capacité d'approvisionnement: 500 pièces par mois
Description de produit
SDEC 4Z2.3-G11 Diesel Generator Set
High-performance 12kW/15kVA diesel generator set with soundproof canopy, designed for reliable prime and standby power applications in construction, industrial, commercial, and emergency backup scenarios.
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 15 17
Power Rating (kW) 12 13
Frequency (Hz) 50
Engine Model 4Z2.3-G11
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Operating Time ≥ 8 hours @ 75% load
Dimensions & Weight
Model BSD17 (Open Type) BSD17S (Silent Type)
Length (mm) 1250 1950
Width (mm) 610 850
Height (mm) 940 1100
Tank Capacity (L) 28 28
Engine Specifications
4Z2.3-G11 Engine Details
Engine Model & Manufacturer 4Z2.3-G11 (SDEC)
Engine Type In-line, 4 strokes, water-cooled
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 4
Bore × Stroke 85 × 100 mm
Displacement 2.3 lit.
Compression Ratio 18:1
Firing Order 1-3-4-2
Fuel Injection Advance Angle 14-17°
Dry Weight 260 kg
Dimension 919×565×760mm
Rotation CCW viewed from flywheel
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164D
Alternator Rated Power 12kW/15kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Control Panel - DSE 6120
Advanced auto start and auto mains failure control module with comprehensive monitoring and protection features.
Key Benefits
  • Automatic transfer between mains (utility) and generator
  • Hours counter for accurate maintenance monitoring
  • User-friendly set-up and button layout
  • Multiple parameter monitoring and simultaneous display
  • Configurable for wide range of applications
  • PLC editor for user-configurable functions
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility and internal PLC editor
  • 3-phase generator and mains sensing and protection
  • Automatic load transfer control
  • Current and power monitoring (kW, kvar, kVA, pf)
  • Real time clock and engine run-time scheduler
  • IP65 rating with optional gasket
DSE 6120 Control Panel Display and Interface
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank
Product Images

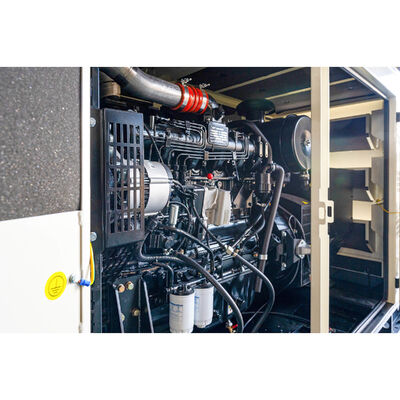

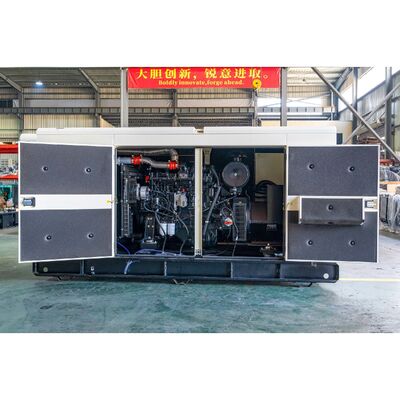

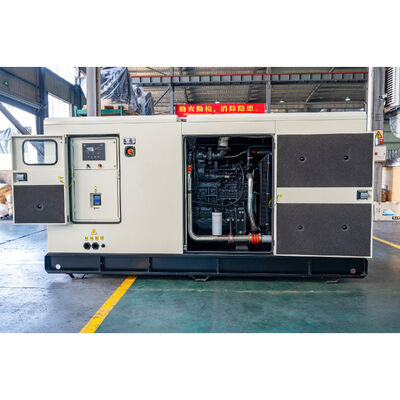

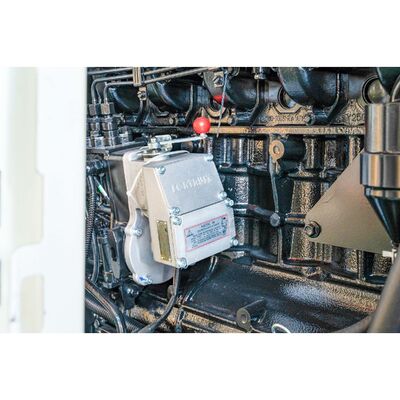

SDEC Diesel Generator Set - Front View SDEC Diesel Generator Set - Side View SDEC Diesel Generator Set - Internal Components SDEC Diesel Generator Set - Control Panel Detail
