Aperçu /Produits/Générateurs diesel de Cummins/160kW diesel Generator Set Super Silent Cummin s Powerd by 200KVA Water Cooled Soundproof 3 Phase Factory Sale Price Low

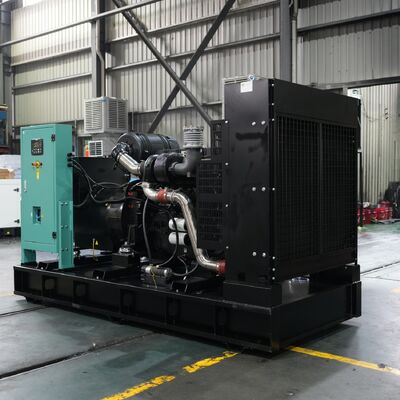

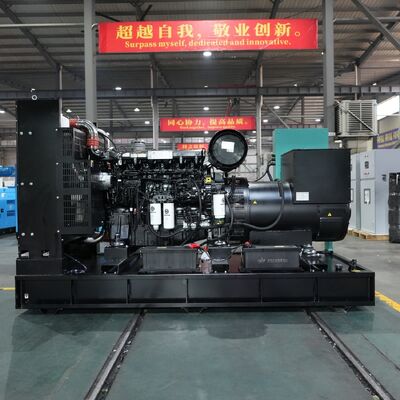

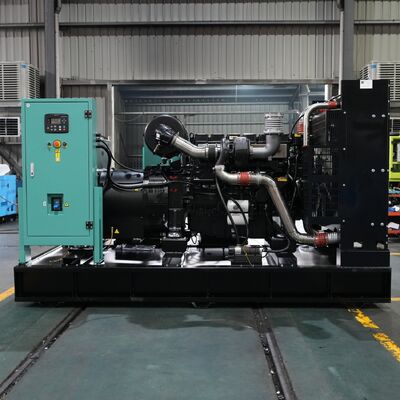

160kW diesel Generator Set Super Silent Cummin s Powerd by 200KVA Water Cooled Soundproof 3 Phase Factory Sale Price Low

160kW diesel Generator Set Super Silent Cummin s Powerd by 200KVA Water Cooled Soundproof 3 Phase Factory Sale Price Low
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Auvent: Personnalisé
Garantie: 12 mois/1 000 heures
taper: Silencieux (super silencieux) ou ouvert, silencieux, etc., en ligne/6 cylindres/4 temps/4 soupapes/1
Panneau de contrôle: Affichage numérique LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Type de sortie: CA monophasé/triphasé
Contrôleur: Deepsea/Smartgen/etc.
Application: Banque industrielle, etc.
Tension nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternateur: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nom du produit: Générateur diesel, générateur 150 kW, alimenté par un générateur diesel CUMMIN S, générateur diesel
Couleur: Exigence des clients
Fréquence: 50/60HZ
Puissance nominale: 160kw
Moteur: CUMMIN S d'origine
méthode de refroidissement: Système de refroidissement par eau
Mettre en évidence:

160kW Cummins diesel generator

,

super silent diesel generator set

,

water cooled soundproof generator
Informations de base
Lieu d'origine: Chine
Nom de marque: CUMMIN S
Certification: CE
Numéro de modèle: Le nombre d'émissions de CO2 est déterminé par la méthode suivante:
Conditions de paiement et expédition
Détails d'emballage: Emballage de bulle
Délai de livraison: 30 jours
Capacité d'approvisionnement: 500 pièces par mois
Description de produit
160kW 200KVA BOBIG CUMMIN S Diesel Generator Set
Model: 6CTAA8.3-G2 - Reliable Power Solution
Product Introduction
Our 160kW 200KVA BOBIG CUMMIN S diesel generator (Model: 6CTAA8.3-G2) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 160kW (200KVA) for various industrial, commercial, and residential applications
  • Stable prime power output ensuring continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: 6CTAA8.3-G2 CUMMIN S engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 200 220
Power Rating (kW) 160 176
Frequency (Hz) 50
Engine Model 6CTAA8.3-G12
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimension and Weight
Model BC220 (Open Type) BC220S (Silent Type)
Length (L) mm 2570 3400
Width (W) mm 950 1220
Height (H) mm 1850 1780
Tank Capacity (L) 368 368
Engine Specifications
Engine Model & Manufacturer 6CTAA8.3-G12 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged and Charge Air Cooled
Bore x Stroke 114 x 135 mm
Displacement 8.3 L
Compression Ratio 18.0:1
Prime Power/Speed 183 kW/1500 rpm
Standby Power/Speed 203 kW/1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274H
Rated Power 160kW/200kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Protection Grade IP23
Insulation Class H Class
Customization & OEM Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Our professional after-sales service team provides 24/7 technical support, maintenance, and repair services.
Why Choose Us
  • Brand Reputation: Cummins is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters for self-maintenance and can supply parts anytime.
Can you customize voltage, frequency, and specifications?
Yes, all specifications can be customized according to your needs.
